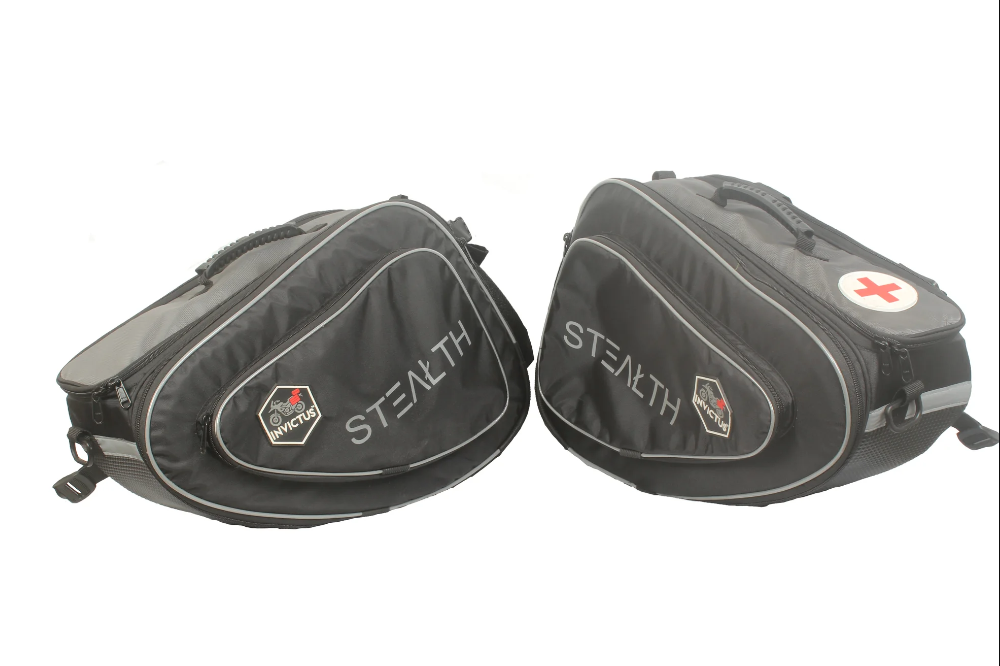

Stealth Saddle bags all specifications

A medium sized small compact rigid saddle bag designed for
use on all bikes including interceptor with saddle stays ( stays
required as per bike but its always safer to have them anyway).
Convenient to use on all extreme upswing exhaust bikes with
high heat silencer ( NOT FOR FREE FLOW EXHAUSTS)
Post use carry handle and shoulder straps have been provided
along with corrugated rubber base and back to prevent wear
and tear damage from terrain and on bike use. Heavy duty but
light weight 1000D jacket grade fabric for long life and
durability, stitched on Japanese make heavy duty Juki machines
with high tensile strength 6 ply pure nylon Indian made
threads.

Small and 0 no stitching for high weight sustenance and
durability (15 stitches per inch)
Universal over the seat and under the seat woven nylon 2’’
thick straps with weight capacity of 40kg each and double D
ring locking system for zero movement on the bike.
3M reflective and heavy duty YKK 8no chains and zippers.
Highly rigid 5mm+ 10mm + 2mm carbon fiber removable
padding inserts on all sides with carbon fiber insert able base
strip. Reflective plastic coated piping for high visibility with
reflective printing.

Two toolkit / organizer compartments on both sides with
600x900D PVC Coated Bcord Fabric with elastic straps .
Technical details
Outer Fabric :- 1000D jacket grade PU coated nylon
Inner Fabric :- Taffeta fabric
Wall paddings :- 5mm Hitlon + 2mm Hard casing Carbon Fiber +
10mm Hitlon
Flap padding:- 5mm Hitlon + Hard casing Carbon Fiber
Fittings:- FF and KB ISO mark fittings
Belts:- 1’’ and 2’’ Woven nylon belts 1’’ belt capacity 20Kg
2’’ belt capacity 40KG
Chain and Runners:- YKK 8 no heavy duty
Reflective:- 3M
Base and back fabric construction:- Heavy duty corrugated
rubber stitched over 1000D nylon fabric
Stitching:- Heavy duty Juki Japanese make machinery
Stitch count:- 15 stitches per inch with double stitching on all
critical parts and internally locked with 1’’ woven nylon piping
belt.
First aid kit , Dust covers and waterproof inner liners included

Thinking behind it:-
This was by far one of the most complicated projects we have
worked on so far, We had a target bike RE interceptor which at
the time didn’t have many good capacity options for saddle
bags. The seat to exhaust height was low ( stock exhausts ) with
the additional challenge of the exhausts being present on both
side and the heat being generated extreme.
Of course as per our usual methods the bag was going to be
universal for all high end cruiser, touring and sports bikes with
simplified yet effective strapping options. Thus began the
journey lasting for months for the most effective strapping
system.
We decided to rely on our Ride Marshall Series strappings
which have proven to be simple, effective and fail proof.
The three point over the seat double locking straps prove to be
effective and easy to do while strapping bike on with luggage,
they have been so placed to enable the user to pull up the bags
as much as required, out of the three locks two have been
placed on both ends and one has been placed in the opposite
side, this has been done to enable similar pull up levels on ends
and central opposite pull up to counter the weight and
drooping.

The straps can be adjusted as per seat height which differs from
bike to bike and seat to seat and of course compatible with
custom seats and saddle stays. The use of under the seat
strapping system however is restricted to some extent for some
Interceptor and Continental GT type bikes as the ratio between
the exhaust and seat is too low to do so but over the seat
strapping works perfectly in such cases.
The tethering has been uniquely designed for all such uses on
any bike including bikes like Impulse Xpulse etc ( saddle stay
required here)
You can either strap it up in the standard way, one strap at the
back and two to the front or you can strap the bag to the
saddle stays and the bike at the same time too!
The newly designed LL buckles + 6 strap locking system enables
you to secure the bag as tightly as you want and anywhere you
want, a detailed video ( its going to be a long one) will be out
shortly.
